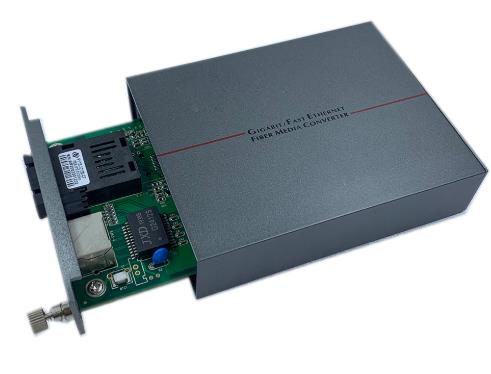

2 Port 1000M Fiber Cable Accessories Gigabit Ethernet Media Converter

Name: 2 Port 1000M Fiber Cable Accessories Gigabit Ethernet Media Converter
Brand: Unique-Tel
Price: 1 USD

Brand Name : Unique-Tel

Model Number : TC1000

Certification : CE, FCC, RoHS

Place of Origin : Hubei, China

MOQ : 1 Piece

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 10000 Pieces/Month

Delivery Time : 5 work days

Packaging Details : carton packaging

Standard : 1000Base-FX

Connector : SC/ST/FC

Storage temp : -20~70℃

Dimension : 70.6x26x94mm

Indicator : Port & power indicator

Contact Now

2-port 1000M Optical Transceiver Gigabit Ethernet Media Converter

Decription

2-port Gigabit media converter. It can convert Ethernet electrical signal into Ethernet optical signal to extend the transmission distance. It also has good isolation protection and data confidentiality. This series include three types of products with different mains input methods and provide Gigabit copper port, Gigabit fiber port. It adopts DIN-Rail or wall mounting to meet the requirements of different application scenes.

This series of products conform to CE, FCC certification standards. Hardware adopts fanless, low power consumption, wide temperature and voltage design, which can suit for the scene environment with harsh requirements. It can be widely used in various fields.

Features

Support 1 Gigabit fiber port, 1 Gigabit copper port

Support built-in power supply 220VAC, 48VDC, external power supply 5VDC

Support -10~60℃ wide operating temperature range

Specifications

Power Requirement	Support three kinds of mains input methods lExternal 5VDC, DC round head lBuilt-in 220VAC, AC socket with switch lBuilt-in 48VDC, 3-pin 5.08mm pitch terminal blocks
Power Consumption	4W
Environmental Limit	Operating temperature: -10~60℃ Storage temperature: -20~70℃ Relative humidity: 5%～95%(no condensation)
Physical Characteristic	Housing: metal Installation: wall or DIN-Rail mounting Dimension (W x H x D): 70.6mm×26mm×94mm (external power supply) 115mm×30mm×173.2mm (built-in power supply)
Certification	CE, FCC, RoHS
Warranty	3 years

Standard & Protocol	IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX IEEE 802.3ab for 1000Base-T IEEE 802.3z for 1000Base-X
Copper Port	10/100/1000Base-T(X), RJ45, automatic flow control, full/half duplex mode, MDI/MDI-X autotunning
Fiber Port	Standard: 1000Base-FX Connection mode: SC/ST/FC optional Transmission distance: lMultimode: 500m/2km lSingle mode: 10/20/40/60/80km Fiber cable: lMultimode: 50/125μm or 62.5/125μm lSingle mode: 8.3/125μm, 8.7/125μm, 9/125μm or 10/125μm Transmission wavelength: lMultimode: 850nm/1310nm lSingle mode: 1310nm/1550nm
LED Indicator	Port indicator, power supply indicator
